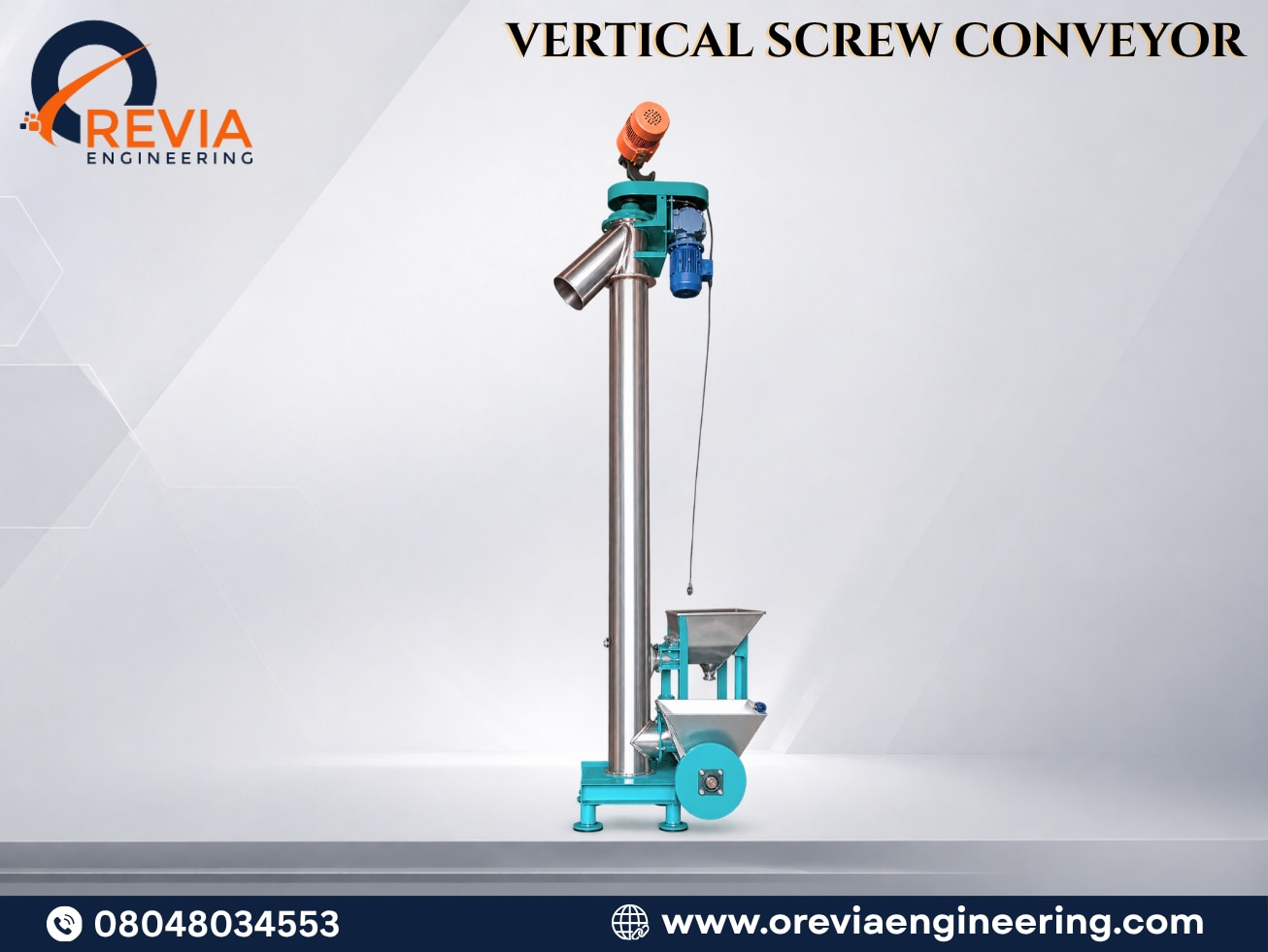

VERTICAL SCREW CONVEYOR

Vertical Screw Conveyor Manufacturer in Ahmedabad.

Orevia Engineering manufactures robust vertical conveying solutions designed to move bulk materials safely and efficiently between different elevations. As a reliable Vertical Screw Conveyor Manufacturer in Ahmedabad, we focus on practical designs that provide controlled material flow, compact installation, and dependable continuous operation.

A vertical screw conveyor is particularly useful where floor space is limited, and material needs to be lifted vertically rather than transported through conventional horizontal systems. The system uses a rotating helical screw flight to elevate material through a vertical tube or enclosed casing.

Working Principle

The operation is simple and efficient:

1. Infeed: Material enters through the lower inlet hopper or feeding arrangement.

2. Helical Conveying: A rotating screw flight lifts the material upward while controlled rotation maintains consistent movement.

3. Controlled Rate: A geared motor drives the screw, while a VFD can be incorporated for adjustable conveying speed.

4. Discharge: The elevated material exits through the top outlet and can be transferred to downstream equipment or storage.

This arrangement helps maintain steady throughput while reducing manual material handling.

Key Features & Technical Specifications

Orevia Engineering designs each conveyor according to the material, application, installation height, and operating requirements.

• Screw Design: Precision-formed helical flights for smooth and consistent conveying.

• Construction: Available in MS or SS 304/316 grades depending on hygiene, corrosion, and process requirements.

• Configuration: U-trough or enclosed tubular construction for controlled material movement.

• Drive System: Geared motor with suitable safety provisions for reliable operation.

• Speed Control: VFD option for variable speed and gentle handling of sensitive materials.

• Protection: Dust-tight covers, ventilation arrangements, and optional inspection/access points.

• Instrumentation: Load-cell sensors, interlocks, and feed-rate synchronization can be integrated where required.

• Maintenance: Removable sections and quick-open covers can simplify inspection and cleaning.

As an experienced Vertical Screw Conveyor Supplier in Gujarat, Orevia Engineering can develop configurations suited to different bulk-material handling conditions.

Benefits of Vertical Screw Conveyors

A properly designed vertical screw conveyor offers several operational advantages:

• Compact footprint: Vertical conveying saves valuable floor space.

• Controlled discharge: Consistent material movement supports downstream processes.

• Low maintenance: A sturdy mechanical design reduces unnecessary maintenance requirements.

• Flexible operation: Variable-speed control allows conveying rates to be adjusted.

• Improved plant safety: Enclosed conveying helps reduce dust exposure and material spillage.

• Continuous handling: Suitable for applications requiring regular or uninterrupted elevation of bulk solids.

Applications

These conveyors can be used for lifting and transferring a wide range of dry bulk materials, including:

• Guar gum and derivatives

• TSP and CMKTP

• CMC powder and derivatives

• Psyllium processing materials

• Chemicals and dyes

• Ceramics

• Pharmaceuticals

• Food-processing materials

• Onion and garlic powder

• Starch and derivatives

• Spice-processing materials

Design & Construction

• Central shaft with precision-formed helical flights (variable pitch available)

• Configuration: U-trough or enclosed O-tube for dust control

• Heavy-duty bearings, gland/shaft seals, and robust end plates

• Gearbox-motor drive with safety guards; inspection/clean-out ports

• Materials of construction: MS, SS 304/316 for hygiene & corrosion needs

Why Choose Orevia Engineering?

Orevia Engineering combines application-focused design with practical fabrication to deliver vertical conveying equipment suited to real plant conditions. Whether you need a compact conveying arrangement or a customized system with speed control, sensors, and enclosed construction, our team can develop a solution around your process requirements.

For businesses looking for a dependable Vertical Screw Conveyor Distributor in India or a Vertical Screw Conveyor Wholesaler in Gujarat, Orevia Engineering offers engineered solutions with attention to performance, construction quality, and ease of operation.

Contact Orevia Engineering today for a customized Vertical Screw Conveyor solution.

Frequently Asked Questions

1. What materials can a vertical screw conveyor handle?

Vertical screw conveyors are suitable for many dry and free-flowing bulk solids, including powders, granules, food ingredients, chemicals, minerals, and processed materials.

2. Can the conveying speed be adjusted?

Yes. A VFD can be incorporated with the geared motor to regulate screw speed and achieve controlled material flow according to process requirements.

3. Is the conveyor available in stainless steel?

Yes. Orevia Engineering can provide stainless-steel construction, including SS 304 or SS 316, when hygiene, corrosion resistance, or product-contact requirements call for it.
