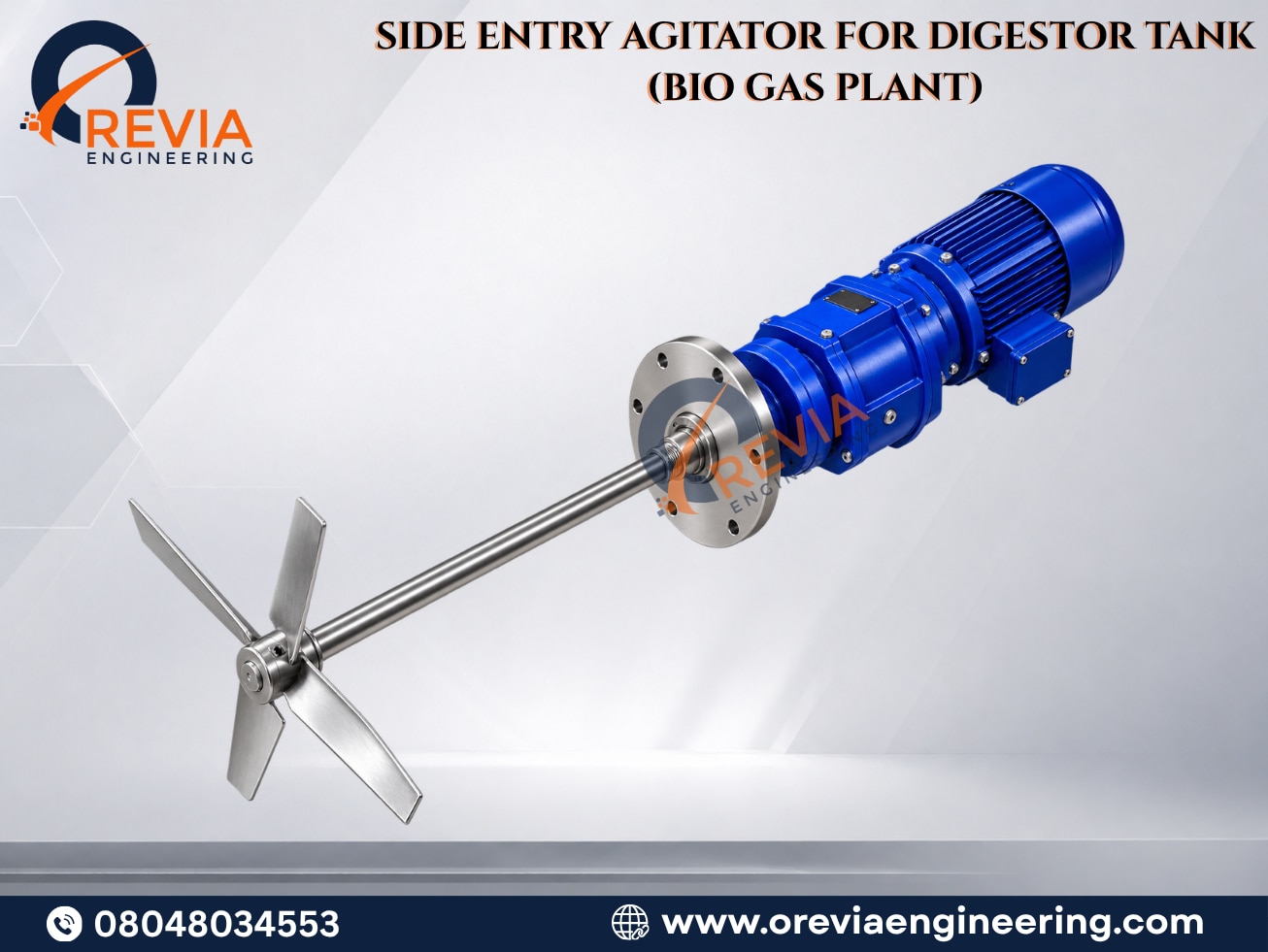

SIDE ENTRY AGITATOR FOR DIGESTOR TANK (BIO GAS PLANT)

Side Entry Agitator Manufacturer in Ahmedabad.

Efficient mixing is one of the most important factors in achieving maximum biogas production. A well-designed Side Entry Agitator ensures uniform circulation of slurry, nutrients, and microorganisms inside the digester tank, creating the ideal conditions for anaerobic digestion. Proper agitation prevents sedimentation, eliminates dead zones, and enhances microbial activity, resulting in improved gas yield and stable plant performance.

Orevia Engineering specializes in manufacturing high-performance Side Entry Agitators for biogas digester tanks. Designed with advanced engineering and premium materials, our agitators provide reliable mixing solutions for modern renewable energy plants. As a leading Side Entry Agitator Manufacturer in Ahmedabad, we deliver customized equipment that improves operational efficiency while reducing maintenance and energy costs.

Advanced Side Entry Agitators for Biogas Plants

A Side Entry Agitator is installed horizontally through the side wall of a digester tank to create powerful axial flow throughout the vessel. This continuous circulation keeps organic material evenly suspended, allowing microorganisms to work efficiently and produce higher volumes of biogas.

As an experienced Side Entry Agitator Supplier in Gujarat, Orevia Engineering designs every agitator to deliver superior mixing performance while handling demanding industrial operating conditions.

Technical Specifications

Orevia Engineering manufactures Side Entry Agitators suitable for various biogas plant capacities.

• Motor Power: Up to 30 kW

• Solid Concentration: 0–10% (W/W)

• Impeller Diameter: 300 mm – 1000 mm

• Shaft Diameter: 30 mm – 100 mm

• Shaft Sealing: Mechanical Seal with Shut-Off Arrangement

• Impeller Type: Hydrofoil, Wide Foil, Turbine

• Wetted Material: SS304, SS316, or higher-grade materials

Our engineering team can customize every agitator according to tank size, slurry characteristics, and plant requirements.

Key Features

Orevia Engineering Side Entry Agitators are designed to provide maximum performance with minimum operating costs.

High-Efficiency Impellers

Specially designed hydrofoil and turbine impellers create powerful circulation while maintaining low shear forces, preserving the integrity of organic material.

Corrosion-Resistant Construction

Manufactured using premium-grade stainless steel (SS304, SS316) and other corrosion-resistant materials for long-lasting durability in aggressive biogas environments.

Variable Speed Control

Optional Variable Frequency Drive (VFD) enables operators to adjust agitation speed according to slurry viscosity and process requirements, improving both flexibility and energy efficiency.

Advanced Sealing System

Heavy-duty mechanical seals with shut-off arrangements prevent leakage and ensure reliable operation under continuous industrial conditions.

Energy-Efficient Design

Optimized impeller geometry minimizes power consumption while maintaining excellent mixing performance, helping reduce operating expenses.

As a reliable Side Entry Agitator Distributor in India, Orevia Engineering ensures each unit undergoes stringent quality checks before installation.

Benefits of Using Side Entry Agitators

Installing a professionally engineered Side Entry Agitator provides significant operational benefits by improving mixing efficiency and overall plant performance. Effective agitation maximizes biogas production by ensuring uniform slurry mixing throughout the digester, preventing sedimentation, reducing floating crust formation, and eliminating dead zones. Improved microbial activity, lower energy consumption, reduced maintenance requirements, and extended equipment life further enhance process reliability. With consistent and continuous operation, these advantages help industries achieve higher efficiency, improved productivity, and better return on investment.

Applications

Our Side Entry Agitators are widely used in:

• Biogas Plants

• Anaerobic Digesters

• Organic Waste Processing

• Agricultural Waste Treatment

• Industrial Wastewater Plants

• Renewable Energy Facilities

• Biomass Processing

• Food Waste Digestion Systems

Our solutions are suitable for both new installations and upgrades to existing biogas plants.

Why Choose Orevia Engineering?

Orevia Engineering combines advanced engineering, quality manufacturing, and extensive industry expertise to deliver reliable industrial mixing solutions. As a trusted Side Entry Agitator Wholesaler in Gujarat, we provide customized agitators designed according to specific process requirements, plant capacity, and operational goals. Each product is manufactured with precision engineering, high-quality materials, and strict quality control standards to ensure long-term performance, minimize downtime, and maximize process efficiency across various industrial applications.

Looking for a customized Side Entry Agitator for your biogas plant? Contact Orevia Engineering today for expert guidance and high-performance industrial mixing solutions.

Frequently Asked Questions (FAQs)

1. What is a Side Entry Agitator used for?

A Side Entry Agitator is used in biogas digester tanks to mix slurry, organic waste, and microorganisms uniformly, improving anaerobic digestion and increasing biogas production.

2. What materials are used to manufacture Side Entry Agitators?

Orevia Engineering manufactures Side Entry Agitators using high-quality SS304, SS316, and other corrosion-resistant materials suitable for harsh industrial and biogas applications.

3. Can Orevia Engineering customize Side Entry Agitators?

Yes. Orevia Engineering provides fully customized Side Entry Agitators based on digester tank size, motor power, impeller type, slurry characteristics, and specific process requirements, ensuring optimal mixing performance and long-term reliability.
