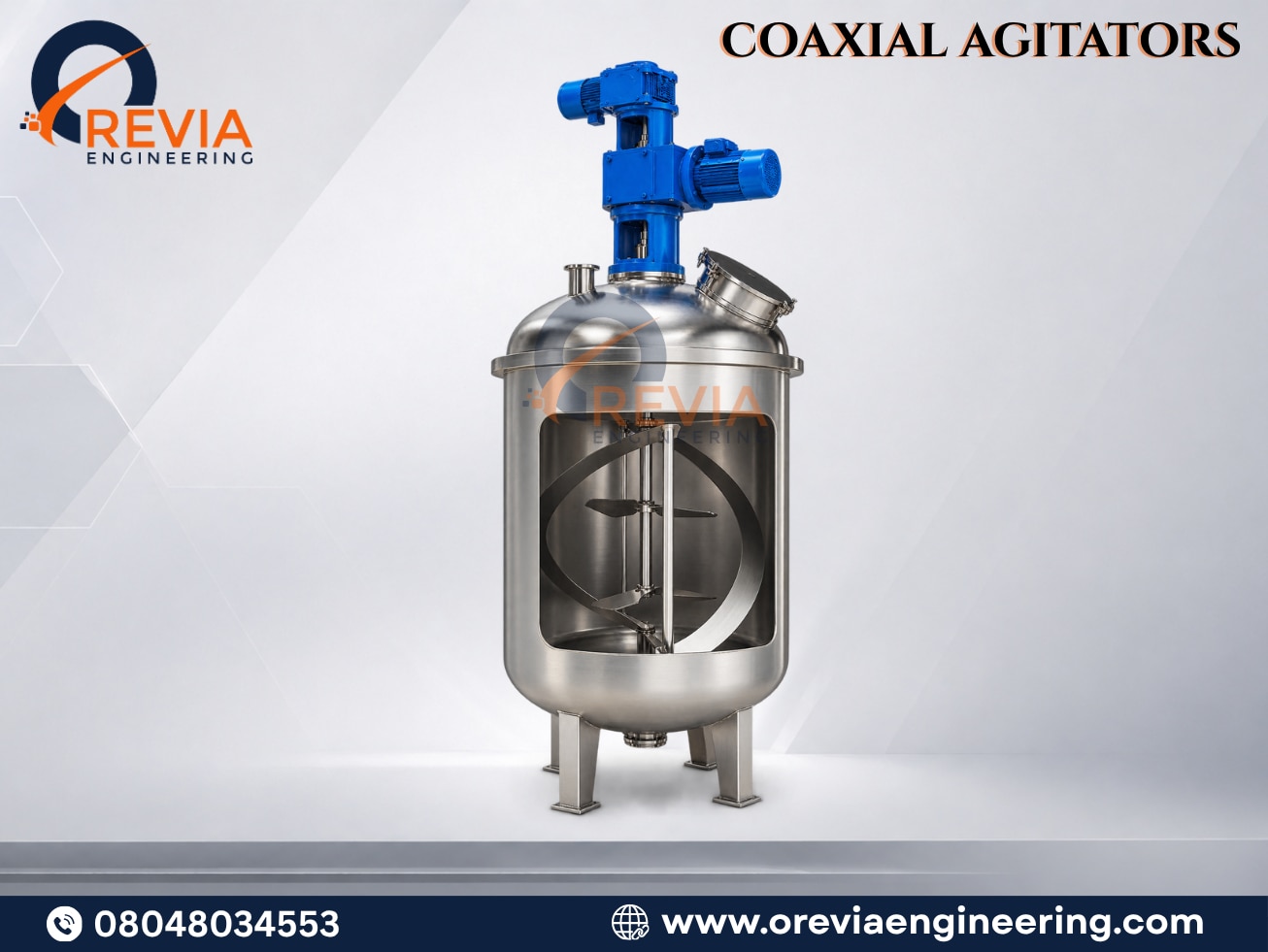

COAXIAL AGITATORS

Coaxial Agitators Manufacturer in Ahmedabad.

Industrial mixing applications involving high-viscosity materials, delicate emulsions, and complex formulations require advanced agitation systems that deliver precision and consistency. At Orevia Engineering, we manufacture high-performance Coaxial Agitators designed with an innovative dual-shaft mechanism to provide efficient mixing through a combination of gentle material circulation and high-shear dispersion. As a trusted Coaxial Agitators Manufacturer in Ahmedabad, we offer customized mixing solutions that help industries improve product quality, reduce processing time, and achieve higher production efficiency.

A Coaxial Agitator consists of two independently driven agitators mounted on a single axis, enabling simultaneous macro-mixing and micro-mixing within the same vessel. This advanced design makes it suitable for processing viscous products, emulsions, suspensions, and sensitive formulations while maintaining excellent mixing control and batch consistency. As a reliable Coaxial Agitators Supplier in Gujarat, Orevia Engineering develops precision-engineered systems tailored to specific industrial requirements, ensuring smooth operation, dependable performance, and uniform results.

Technical Specifications

Orevia Engineering manufactures fully customized Coaxial Agitators to suit diverse industrial applications.

• Vessel Capacity: 50 Liters to 25,000 Liters

• Viscosity Handling: Up to 500,000 cP

• Outer Agitator Motor: 0.5 HP to 50 HP

• Inner High-Shear Motor: 1 HP to 100 HP

• Outer Agitator Speed: 10–60 RPM (VFD Controlled)

• Inner Agitator Speed: 300–3000 RPM (VFD Controlled)

• Material of Construction: SS304, SS316, SS316L, Duplex Steel, Hastelloy

• Surface Finish: Matte, Mirror Polish, Electropolished

• Sealing Options: Gland Packing, Lip Seal, Single or Double Mechanical Seal

• Mounting: Top Entry Flange Mounting

• Optional Features: PTFE Wall Scrapers, Temperature & pH Sensors, CIP/SIP System, Hydraulic Lift, ATEX Explosion-Proof Motors

Every system is engineered to match the customer's production process, material characteristics, and operational requirements.

Key Features & Benefits

Orevia Engineering's Coaxial Agitators are designed for maximum efficiency and long-term reliability.

Why Choose Our Coaxial Agitators?

• Dual-shaft mixing technology for superior homogenization

• Independent VFD speed control for both agitators

• Excellent performance with high-viscosity products

• Faster dispersion and emulsification

• Reduced batch processing time

• Optimized energy consumption

• Premium stainless steel construction

• Hygienic and easy-to-clean design

• Low maintenance with extended service life

• Fully customized according to process requirements.

As a trusted Coaxial Agitators Distributor in India, we ensure every machine undergoes rigorous quality inspection before delivery to guarantee dependable industrial performance.

How Coaxial Agitators Work

The strength of a Coaxial Agitator lies in the synchronized operation of two specialized mixing systems.

Outer Anchor or Parabolic Agitator

The outer agitator rotates at a low speed with high torque, continuously sweeping the vessel walls to eliminate dead zones and prevent material buildup. Wall scrapers ensure efficient heat transfer while maintaining complete batch circulation.

Inner High-Shear Agitator

The centrally mounted high-speed shaft is equipped with specialized impellers such as disperser blades, rotor-stator systems, or pitched-blade turbines. This creates intense shear for rapid powder dispersion, emulsification, particle size reduction, and homogeneous mixing.

Applications Across Industries

Our Coaxial Agitators are widely used in industries requiring precise and efficient mixing.

• Chemical Industry

• Paint & Coating Industry

• Ink Manufacturing

• Adhesive & Sealant Industry

• Cosmetics & Personal Care

• Pharmaceutical Industry

• Food & Beverage Processing

• Polymer Manufacturing

• Resin Processing

From manufacturing creams and lotions to producing industrial coatings and adhesives, our agitators deliver consistent and repeatable results.

Why Choose Orevia Engineering?

Orevia Engineering is dedicated to delivering innovative industrial mixing equipment designed for superior performance, durability, and operational efficiency. As a trusted Coaxial Agitators Wholesaler in Gujarat, we collaborate closely with customers to develop customized solutions that align with their production capacity, viscosity requirements, and specific application needs. With strong engineering expertise, precision manufacturing capabilities, and reliable technical support, we have become a preferred partner for industries across India seeking advanced and dependable mixing solutions.

Looking for a customized Coaxial Agitator for your production facility? Contact Orevia Engineering today and let our experts design the ideal industrial mixing solution for your application.

Frequently Asked Questions (FAQs)

1. What is a Coaxial Agitator?

A Coaxial Agitator is an advanced dual-shaft mixing system that combines a slow-speed anchor agitator with a high-speed disperser to mix, emulsify, and homogenize high-viscosity materials efficiently.

2. Which industries use Coaxial Agitators?

Coaxial Agitators are widely used in the chemical, pharmaceutical, cosmetics, food processing, paint, ink, adhesive, sealant, polymer, and coating industries.

3. Can Orevia Engineering customize Coaxial Agitators?

Yes. Orevia Engineering offers customized Coaxial Agitators with different vessel capacities, motor powers, materials of construction, sealing systems, VFD controls, wall scrapers, CIP/SIP systems, and other optional features to meet specific industrial requirements.
