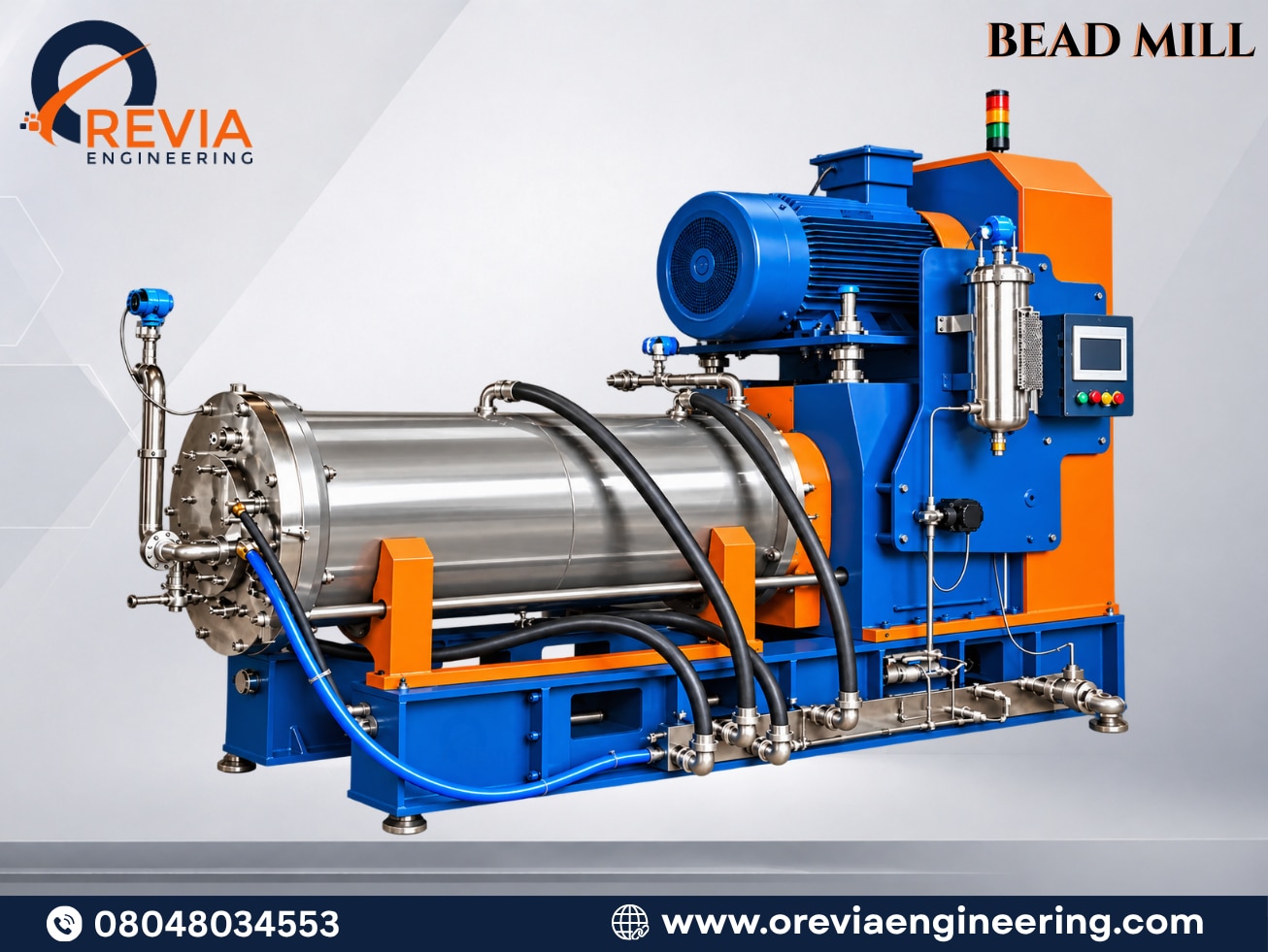

BEAD MILL

Bead Mill Manufacturer in Ahmedabad.

A bead mill is an advanced wet-grinding machine designed to reduce particle size and achieve uniform dispersion in solid-liquid processing. It uses small grinding media and controlled mechanical energy to break down particles efficiently, making it suitable for applications requiring fine or micron-level particle sizes.

Orevia Engineering Pvt. Ltd. manufactures bead mills for industries that require consistent grinding performance, controlled particle distribution, and efficient processing. As a reliable Bead Mill Manufacturer in Ahmedabad, we focus on robust construction, effective grinding technology, and practical solutions for different material characteristics.

How Does a Bead Mill Work?

Material enters the grinding chamber through a controlled feed system, where continuously agitated grinding beads interact with the material through a rotating shaft fitted with grinding discs. The resulting impact and shear forces progressively reduce particle size while improving dispersion. After processing, the material passes through a separation system that retains the grinding media inside the chamber while allowing the finished product to exit. The grinding performance depends on factors such as bead size and material, material viscosity, feed rate, residence time, and operating speed.

Key Advantages

A properly selected bead mill can provide:

• Fine particle-size reduction

• Consistent and concentrated particle distribution

• Efficient wet grinding

• High processing efficiency

• Controlled dispersion

• Reduced energy consumption per unit of production

• Suitable operation with different grinding media

• Adaptability for different material viscosities

• Reliable continuous processing

• Easy integration into industrial production lines

As an experienced Bead Mill Supplier in Gujarat, Orevia Engineering provides grinding equipment selected according to the required fineness, material properties, and production conditions.

Main Applications

Bead mills are suitable for a wide range of industries, including:

• Coatings: Pigment grinding and dispersion for paints and industrial coatings.

• Cosmetics: Fine dispersion of pigments and functional ingredients.

• Battery Materials: Processing of active materials and conductive components.

• Graphite: Fine grinding and dispersion of graphite-based materials.

• Agrochemicals: Processing of pesticides, herbicides, and agricultural formulations.

• Adhesives: Fine dispersion of solid components in adhesive formulations.

• Inks: Pigment dispersion and particle-size reduction.

• Electronic Pastes: Fine grinding for specialized electronic formulations.

Grinding Media Selection

Grinding media play a key role in determining final grinding performance. Depending on the application, suitable media may include:

• Zirconia beads

• Zirconium silicate beads

• Glass beads

• Other application-specific grinding media

Selection should consider material hardness, required particle size, viscosity, temperature sensitivity, and desired production capacity. Smaller beads are generally preferred for very fine particle sizes, while larger beads can be useful for processing comparatively coarse feed material.

As a dependable Bead Mill Distributor in India, Orevia Engineering can help you select an appropriate grinding configuration based on your process requirements.

Important Operating Considerations

For consistent performance and longer equipment life, operators should pay attention to:

• Material viscosity: The viscosity should remain within the recommended operating range.

• Grinding speed: Excessive speed can increase wear on grinding components and media.

• Feed rate: A controlled feed rate helps maintain stable grinding conditions.

• Grinding media: Remove broken or worn media and replace them as needed.

• Temperature: Maintain cooling when the process generates significant heat.

• Material hardness: Highly abrasive materials can accelerate wear of the grinding chamber and discs.

• No-load operation: Avoid unnecessary operation without material in the grinding chamber.

Construction & Major Components

A bead mill generally consists of several engineered components working together:

Frame: A rigid frame supports the grinding chamber, bearing arrangement, shaft, and drive system, providing stability during operation.

Grinding Chamber: The enclosed grinding chamber contains the grinding media and material. A cooling arrangement can help control processing temperature.

Grinding System: The rotating shaft carries grinding discs or similar elements that transfer mechanical energy to the beads, creating the impact and shear required for particle-size reduction.

Separation System: The separator retains grinding media inside the chamber while allowing the processed material to flow out.

Drive & Transmission: The motor and transmission system provide controlled rotational energy to the grinding shaft for continuous operation.

Sealing Arrangement: A suitable sealing system protects the grinding chamber and shaft assembly while minimizing the risk of material leakage.

Why Choose Orevia Engineering Pvt. Ltd.?

Orevia Engineering Pvt. Ltd. combines engineering expertise with application-focused equipment design to deliver reliable grinding solutions for demanding industries. From material evaluation and mill selection to installation and operational support, the company focuses on achieving the required particle size and consistent product quality. For bulk requirements, Orevia Engineering also serves as a trusted Bead Mill Wholesaler in Gujarat, providing dependable industrial grinding solutions for customers across diverse sectors.

Looking for efficient fine grinding and dispersion? Contact Orevia Engineering Pvt. Ltd. for a bead mill solution matched to your material and production requirements.

Frequently Asked Questions

1. What is a bead mill used for?

A bead mill is used for wet grinding, particle-size reduction, and dispersion of solid materials in liquid formulations. It is commonly used in coatings, cosmetics, agrochemicals, inks, adhesives, and battery materials.

2. Which grinding media can be used in a bead mill?

Depending on the material and required fineness, you can choose grinding media such as zirconia beads, zirconium silicate beads, and glass beads.

3. Why choose Orevia Engineering Pvt. Ltd.?

Orevia Engineering Pvt. Ltd. provides application-focused bead mill solutions designed around material characteristics, required fineness, production capacity, and processing requirements.
